Abso 24 VDC
Grease Pump

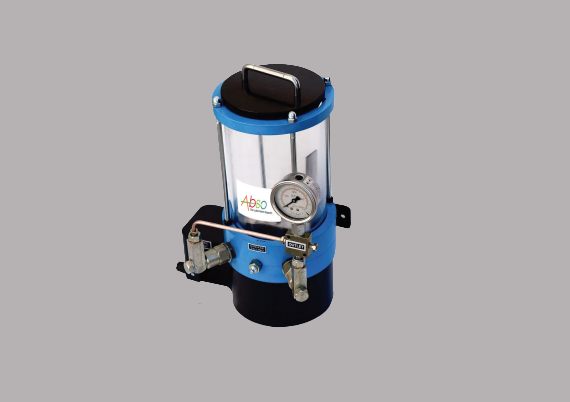

ABSO 24 VDC GREASE PUMP
These pumps are driven by 24 VDC power supply maximum pressure for these pumps are 350 bar with relief valve
set at 200 bar these pumps are suitable for various applications. They are normally used with Progressive
Distributors or directly as multi line pumps. They come in different reservoir capacities 3,5 or 7 kg depending on
the models & Series. The pump can accommodate maximum for all Element Units (in ABSO Pro Models Max 3 )
Applications - Buses & Truck, Concrete Pump, Excavator, Wheel Loader, Dozer, Motor Grader, etc.
Applications - Buses & Truck, Concrete Pump, Excavator, Wheel Loader, Dozer, Motor Grader, etc.
Technical Specifications of ABSO 24 VDC Grease Pump
| Reservoir Type | Transparent |
| Voltage Supply | 24 VDC |
| Max Output Pressure | 150 to 200 Bar |
| Grease Dispense | 3cc/Stroke |
| 24 VDC | Cyclic Controller |
| Reservoir Capacity | 3 Liter/ 6 Liter |
| Automation Grade | Automatic |
| No of Pump Element | 1 |
| Motor Power | 0.04 HP |
| Speed | 1375 RPM |
