ABSO Dual
Line Pump

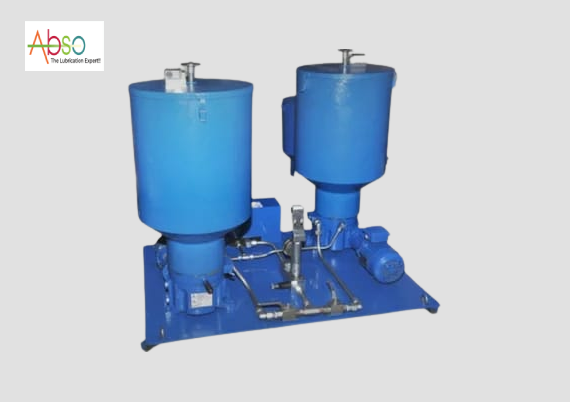

ABSO DUAL LINE LUBRICATION SYSTEM
The ABSO Dual line system as the name suggests, consists of two main supply lines which are laid parallel to the equipment to be lubricated. Inlets dose feeders (Grease Distributors) are connected to these two lines and the outlets from the feeders are connected to points of lubrication. The pump feeds grease alternately into the two main supply lines through a reversing valve. This alternate pressurization and relieving actuates the dose feeders making them dispense reqired quantity of lubricant.
Technical Specifications of ABSO Dual Line Pump
| Reservoir Type | Metal |
| Pump Flow Rate | 0.15 Liter/Min |
| Max Output Pressure | 400 Bar |
| Voltage Supply | 3 Phase, 415 VAC, 4 Pole |
| Motor Power | 1.0 HP Motor Rating |
| Reservoir Capacity | 50/100 Ltrs |
