ABSO
Single Point
Lubricator
ABSO SINGLE POINT LUBRICATOR

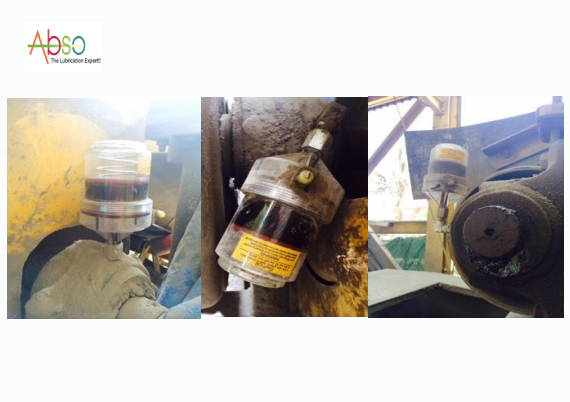

1. These SPL’s can be mounted straight on the Bearings.
2. With Elbow joint near Bearings having access difficulty
3. Even in Inverse position the Grease would flow due to pressure from the Spring in the Reservoir
This solves both the Safety & Accessibility issues. The distinct Advantage over other competitors is this is Refillable and thus is not use & throw type of unit. This is ensuring better cost & re-useable value to the client.
2. With Elbow joint near Bearings having access difficulty
3. Even in Inverse position the Grease would flow due to pressure from the Spring in the Reservoir
This solves both the Safety & Accessibility issues. The distinct Advantage over other competitors is this is Refillable and thus is not use & throw type of unit. This is ensuring better cost & re-useable value to the client.
Technical Specifications of ABSO Single Point Lubricator
| Material | Polycarbonate domes and bases |
| Thread Size | 1/8” NPT |
| Operating Temperature | -10ºF to 250ºF (23ºCto 121ºC) |
| Reservoir Capacity | Dimensions | Part number |
|---|---|---|
| 1 oz (28.3 g) | 1-3/4” diameter (44.5mm) 3-5/8” height(92.1mm) | ABSO 101 |
| 2 oz (56.7 g) | 2-3/8” diameter (60.3mm) 4-5/8” height(117.5mm) | ABSO 102 |
| 6 oz (170.1 g) | 3” diameter (75mm) 6” height (152.4mm) | ABSO 103 |
